Intro
The purpose of this project was to measure the potential overhead of VividCortex Agent, which is used by VividCortex.com database monitoring system. This benchmark is part of a consulting engagement with VividCortex and paid by the customer.
The assumption is that VividCortex agent uses CPU processing time, and we should see an impact on user queries when the workload is CPU-intensive (how much is to be measured). The impact on IO-bound should be small or insignificant.
Workload Description
For this, we use LinkBenchX benchmark in a combination of different options.
Workloads
There are 3 different workloads we want to look into:
- CPU bound. All data fits into memory; database performance is limited by CPU and memory speed. In this mode the server will be 100% CPU bound and we should see reduced performance when the agent is running.
- CPU bound with limited CPUs. This mode is identical to previous, with a difference that only 4 CPUs are available for mysqld and vc-mysql-query processes. This to emulate “cloud-based” environment. In this workload even less CPUs are available, so we expect even bigger performance hit when running with agent.
- IO-bound workload. In this workload the performance will be limited by storage IO performance, the impact from agent should be minimal.
LinkBenchX modes
We use two modes in LinkBenchX
- Throughput mode. This mode allows to measure maximal throughput that database server can achieve.
- “Request rate” mode. In this mode, LinkBenchX generates load with specified rate, so it allows to measure and compare response times for different configurations. Usually, we set request rate on the level of 75% of maximal throughput
We measure (throughput & 99% response time) for operations ADD_LINKS (write operation) and GET_LINKS_LIST (range select operation) in 10 sec intervals
Agent modes
We wanted to compare the performance impact of VividCortex’s agent to PERFORMANCE_SCHEMA so we measured 4 combinations, of enabled/disabled in following ways:
- Performance Schema disabled (OFF in my.cnf), marked as
"NO-PS"in charts - Performance Schema enabled (ON in my.cnf, no additional probes enabled), marked as
"with-PS"in charts - VividCortex agent is not active (
"NO-vc-agent"in charts) - VividCortex agent is active (
"vc-agent"in charts)
Summary
CPU bound
In the CPU bound workload, the impact from the enabling agent is the most significant.
Throughput impact:
- By enabling
PERFORMANCE_SCHEMAwe see overhead 1.8% in throughput - By enabling
vc-agentthe overhead is 10.7% in throughput - By enabling
PERFORMANCE_SCHEMAand vc-agent the overhead is 11.7% in throughput
It is worth to highlight, that in CPU-bound load, the vc-mysql-query agent’s CPU consumption is related to the amount of traffic it has to sniff and on CPU-bound workloads with high query traffic it can use up to a single CPU core. We did not benchmark a CPU-bound server with low query traffic. That’s why we decided to measure an impact of vc-agent in a case of limited amount of CPU available (say in a case of cloud or container server).
Response time impact:
on ADD_LINKS operation
PERFORMANCE_SCHEMAimpact: added 20% to response timevc-agentimpact: added 42% to response timePERFORMANCE_SCHEMAandvc-agentimpact: added 63% to response time
on GET_LINKS_LIST operation
PERFORMANCE_SCHEMAimpact: added 7.7% to response timevc-agentimpact: added 21.6% to response timePERFORMANCE_SCHEMAandvc-agentimpact: added 30.9% to response time
CPU bound (4 CPU cores are available)
In the CPU bound workload the impact from the enabling agent is the most significant.
- By enabling
PERFORMANCE_SCHEMAthe overhead is 5% in throughput - By enabling,
vc-agentthe overhead is 13% in throughput - By enabling
PERFORMANCE_SCHEMAandvc-agent, the overhead is 17.8% in throughput
Response time impact:
on ADD_LINKS operation
PERFORMANCE_SCHEMAimpact: added 14% to response timevc-agentimpact: added 52% to response timePERFORMANCE_SCHEMAandvc-agentimpact: added 84% to response time
on GET_LINKS_LIST operation
PERFORMANCE_SCHEMAimpact: added 10% to response timevc-agentimpact: added 51% to response timePERFORMANCE_SCHEMAandvc-agentimpact: added 74% to response time
IO Bound
There is no statistical difference in throughput and response time when running with PERFORMANCE_SCHEMA enabled and/or with vc-agent.
Conclusion
The impact from running vc-agent and/or PERFORMANCE_SCHEMA might be negligible or significant, depending on your workload. Numbers above (the impact on throughput and response time) are border cases and might be used as low and high limits for estimation of impact. Most likely for a real workload the overhead will be in the middle.
There is no measurable impact from vc-agent in IO bound workload, but in CPU-bound you may want to make sure you have spare CPU cycles for vc-agent, as it is computation intensive and may add visible overhead to response times.
Supporting graphs.
CPU bound

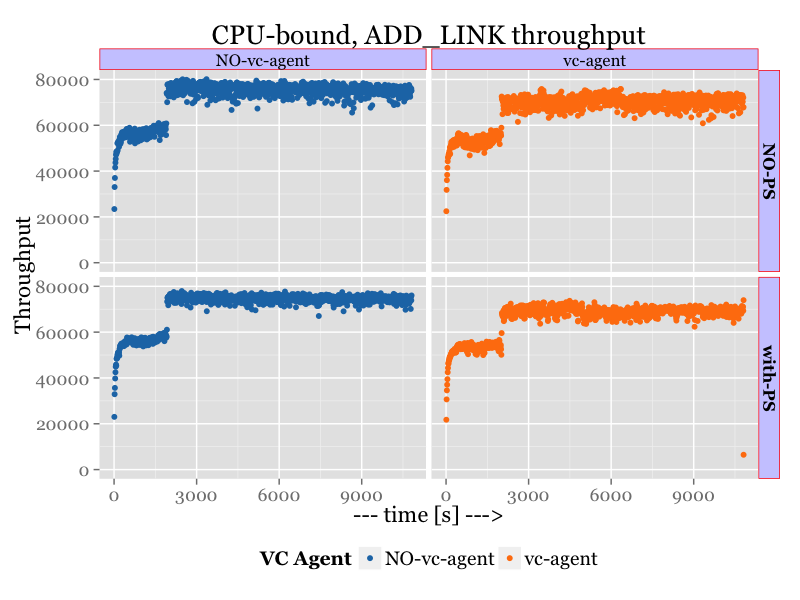

Throughput timeline

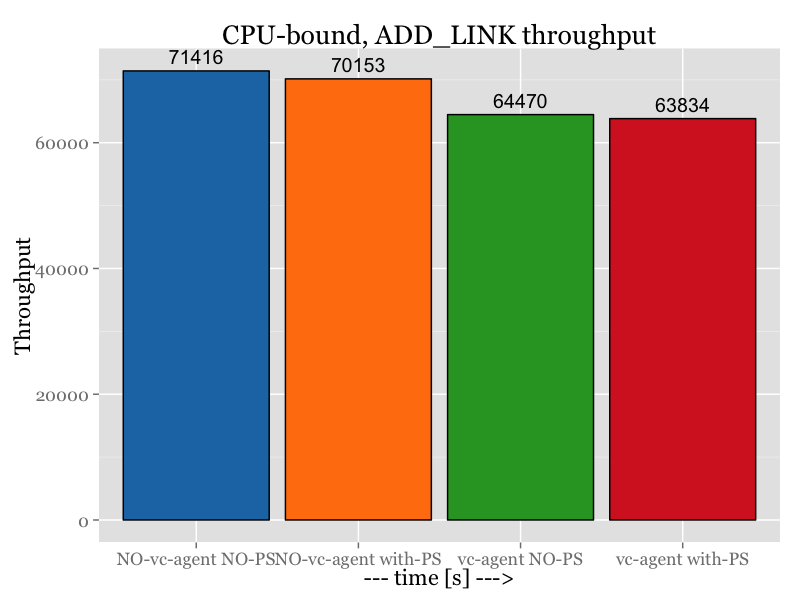

Throughput summary

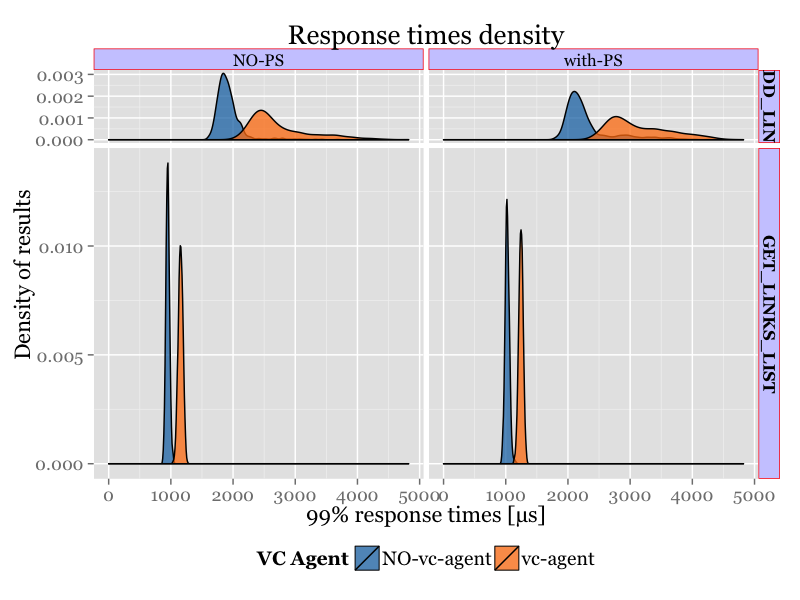

Response time density chart
CPU bound (4 CPU available)

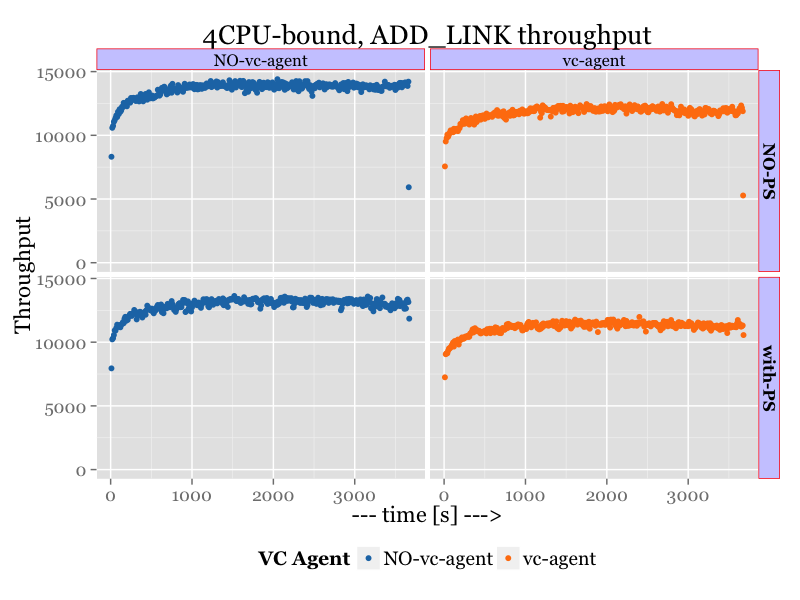

Throughput timeline

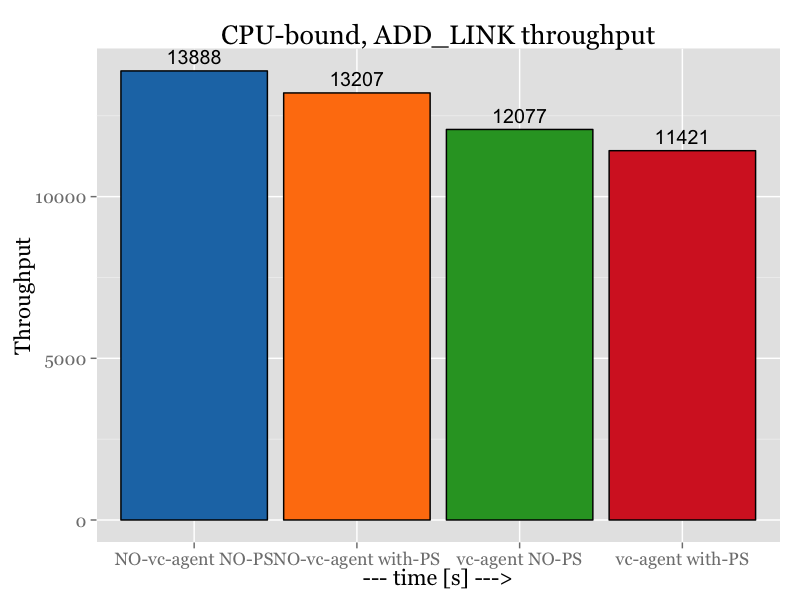

Throughput summary

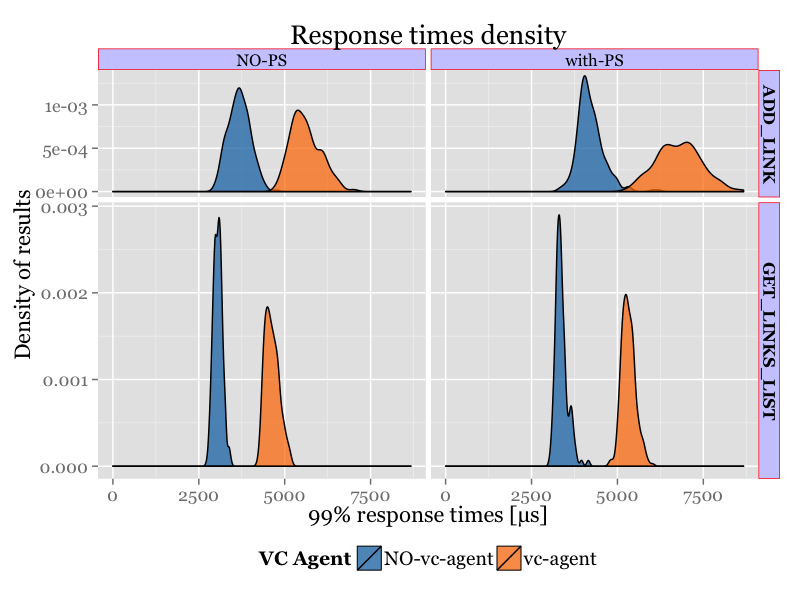

Response time density chart
IO bound

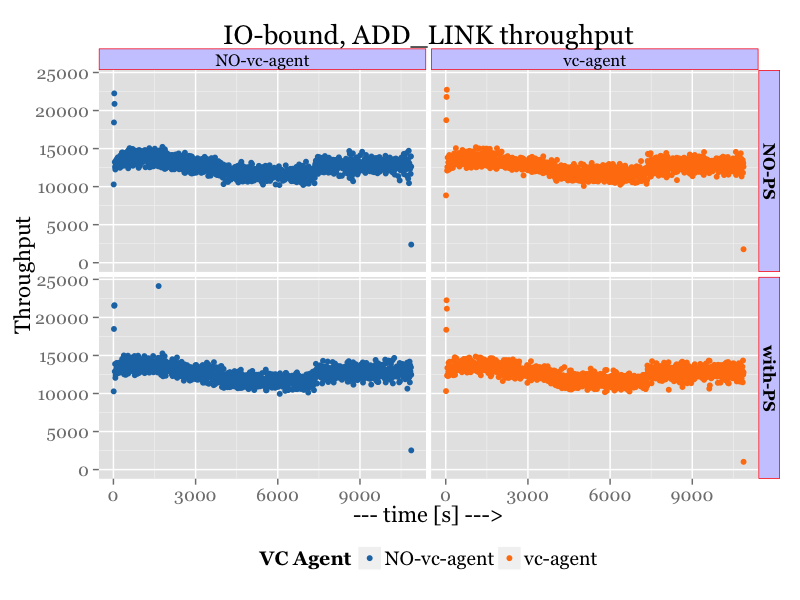

Throughput timeline

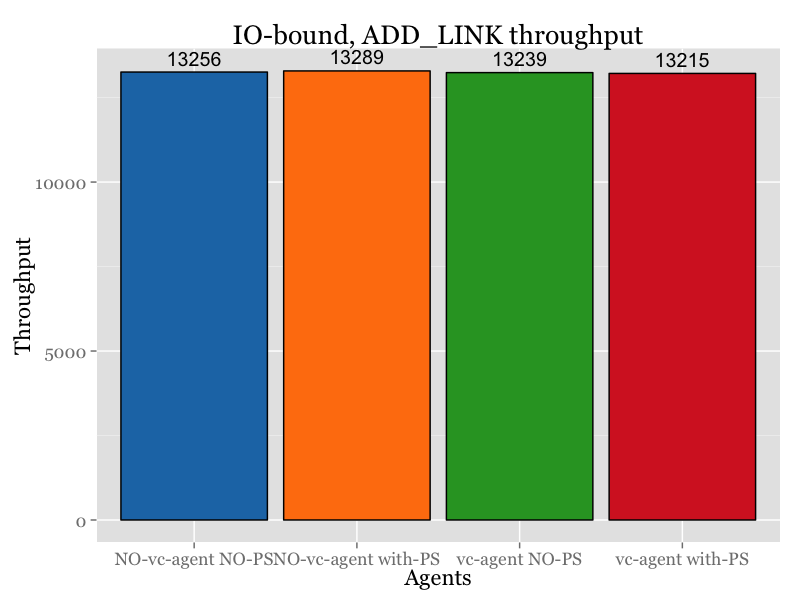

Throughput summary

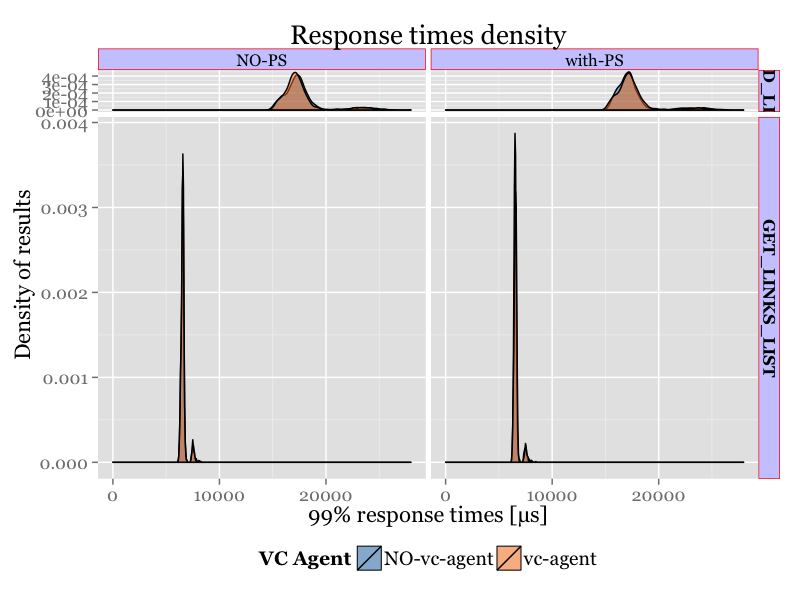

Response time density chart
