Here is part two of my MySQL with Diagrams series (Here’s part one – MySQL with Diagrams Part One: Replication Architecture). We are going to explore how MySQL handles thread termination using the KILL command, as visualized in the provided diagram, and provide sample demonstrations to help you better understand.

Many people think they know this topic, but it is unknown or known incorrectly. KILLs are not handled by the thread that runs the KILL command; they are handled by the thread itself, which is killed by another thread. It’s a bit confusing, which is why diagrams work well for this.

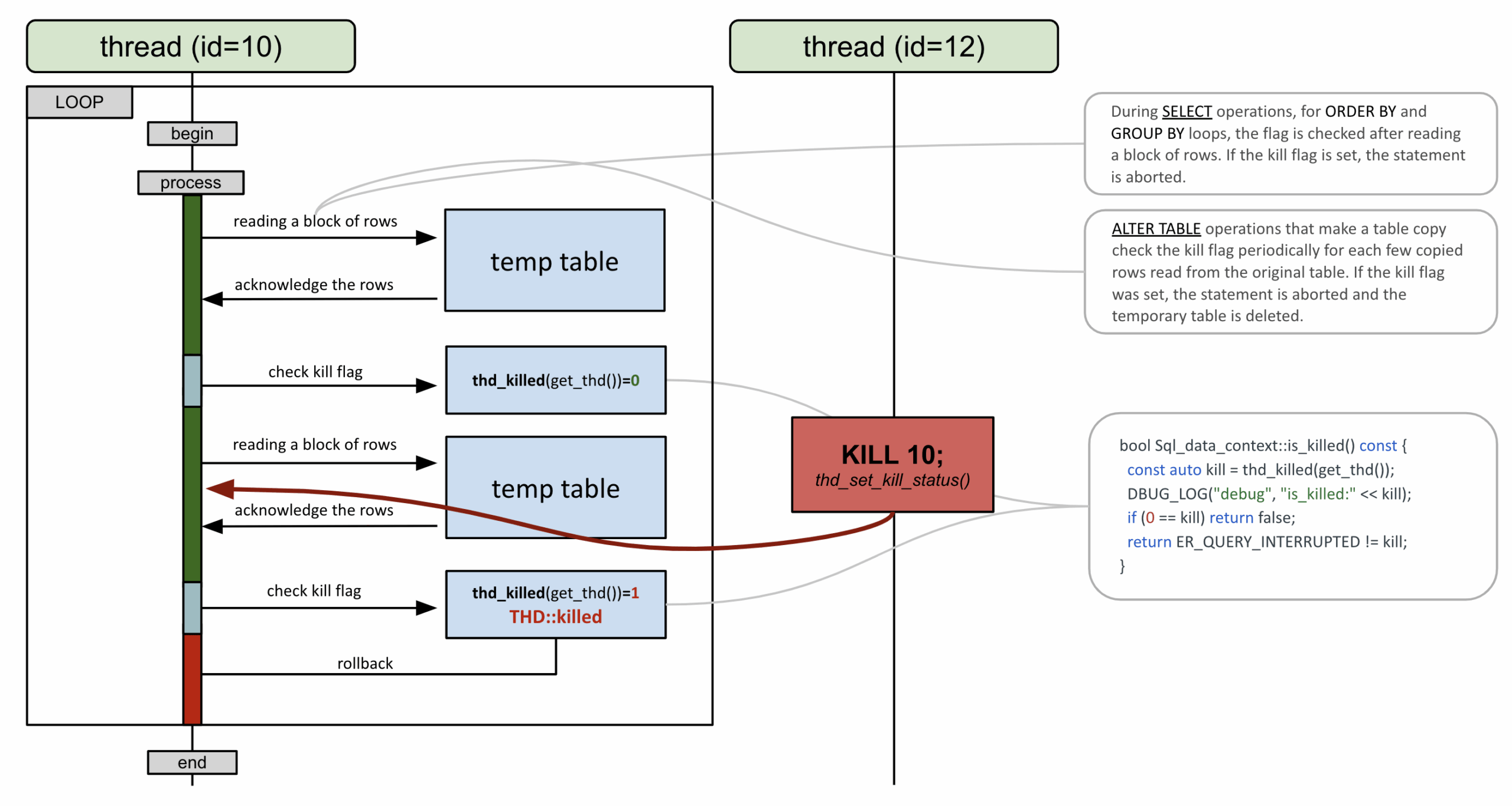

The diagram illustrates the interaction between two threads:

  • Thread ID 10 represents a worker thread that is actively executing a query.
  • Thread ID 12 issues the KILL 10 command to terminate Thread ID 10.

Thread 10: The thread enters a loop where it processes a query in chunks. For operations like ORDER BY or GROUP BY or ALTER TABLE, it reads blocks of rows, processes them, and acknowledges the rows. After processing each block, it checks the thd_killed() flag to determine if it should continue or terminate.

Thread 12: This thread sends a KILL command, which sets the kill flag for Thread 10 using the function thd_set_kill_status().

Kill flag behavior

If the kill flag remains unset (thd_killed()=0), Thread 10 continues its processing. When the flag is set (thd_killed()=1), the query execution is aborted, the temporary table is discarded, and any active transactions are rolled back.

MySQL function: is_killed()

The function is_killed() checks whether the thread should terminate:

If kill == 0, the thread continues running. If kill != 0the thread is interrupted, further execution is stopped.

Conclusion

By understanding the KILL command and how MySQL manages thread lifecycle, you can decide or understand why it takes more time than expected. As always, double-check your query and avoid killing threads indiscriminately in production environments, as this could disrupt critical operations. It was good to be safe than sorry.

Also, what should be next in the series? Comments are more than welcome, as always.

Subscribe
Notify of
guest

5 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
Kristian Kohnntopp

Make a drawing for UPDATE t SET a=a+1 WHERE id=17

Show the redo log, undo log, and tablespace pages in memory and on disk, and what happens on COMMIT and on checkpointing.

0
Reply
Yunus Uyanik

Hi Kristian,
Thank you for your comments. I will definitely consider them. However, what I’m trying to illustrate is general behavior regarding various topics. It’s quite challenging to address specific queries, isolation levels, and so on. Understanding the main topics will allow you to make a comment for specific cases.

0
Reply
Kristian Kohnntopp

Make a drawing for UPDATE t SET a=a+1 WHERE id=17.

Show multiple concurrent threads:

  • One making the change, in a loop.
  • One is selecting with SET TRANSACTION ISOLATION LEVEL READ UNCOMMITTED.
  • One is selecting with SET TRANSACTION ISOLATION LEVEL READ COMMITTED.
  • One thread is using REPEATABLE READ isolation level, but does START TRANSACTION READ ONLY, selects twice the same interval, and does a COMMIT, starts a new transaction and selects again.
  • One thread is using SERIALIZED in a similar setup as the REPEATABLE READ thread.

Optionally: Also show the purge thread.

0
Reply
Kristian Kohnntopp

A thread is starting a START TRANSACTION READ ONLY which takes 8 hours (mysqldump on a large database).

Other threads make changes, other threads read. The database is getting slow.

The mysqldump finishes. Within a minute the system recovers.

Show on the graphic where index bloat and undo log bloat hurt you.

0
Reply
Kristian Kohnntopp

Using the first graphics
> Show the redo log, undo log, and tablespace pages in memory and on disk, and what happens on COMMIT and on checkpointing.
make many changes, and have the database crash and recover before COMMIT, after COMMIT and before checkpointing and, this is simple, after checkpointing.

Show in the graphic why data is lost or not lost and how recovery works.

Show a script (in Python?) that exercises this scenario on a server in a loop, demonstrating verifiably that all this is actually true (replication breaks if the server crashes with CREATE TEMPORARY TABLE active and SBR is used – why?)

0
Reply
