Analyzing air traffic performance with InfoBright and MonetDB

Accidentally me and Baron played with InfoBright (see https://www.percona.com/blog/2009/09/29/quick-comparison-of-myisam-infobright-and-monetdb/) this week. And following Baron’s example I also run the same load against MonetDB. Reading comments to Baron’s post I tied to load the same data to LucidDB, but I was not successful in this. I tried to analyze a bigger dataset and I took public available data http://www.transtats.bts.gov/DL_SelectFields.asp?Table_ID=236&DB_Short_Name=On-Time about USA domestic flights with information about flight length and delays. The data is available from 1988 to 2009 in chunks per month, so I downloaded 252 files (for 1988-2008 years) with size from 170MB to 300MB each. In total raw data is about 55GB. Average amount of rows in each chunk is 483762.46 (the query Q0 is:

for InfoBright and

for MonetDB. For InfoBright it took 4.19 sec to execute and 29.9 sec for MonetDB, but it’s almost single case where MonetDB was significantly slower) Few words about environment: server Dell SC1425, with 4GB of RAM and Dual Intel(R) Xeon(TM) CPU 3.40GHz. InfoBright (ICE) version: 5.1.14-log build number (revision)=IB_3.2_GA_5316(ice) MonetDB version: server v5.14.2, based on kernel v1.32.2 LucidDB was 0.9.1 The table I loaded data is:

Last fields starting with “Div*” are not really used. Load procedure: Infobright: the loader that comes with ICE version is very limited and I had to transform files to quote each field. After that load statement is:

The load time for each chunk was about 30s/chunk in initial years and up to 48s/chunk for 2008 year. And total load time is 8836 sec (2.45h). The size of database after load is 1.6G which is impressive and give 1:34 compress ratio. MonetDB: It took some time to figure out how to load text data ( I really wish developers improve documentation), but finally I ended up with next load statement:

Load time: 13065 sec ( 3.6h) Database size after load is 65G , which is discouraging. It seems it does not use any compression, and it’s bigger than original data. LucidDB Here it took time to find how to execute command from command line using included

utility, and I did not understand how to do that, so I generated big SQL file which contained load statements. Load of each chunk was significantly slower starting with about 60 sec/chunk for initial year and constantly growing to 200 sec / chunk for 2000 year. On 2004 year (after about 5h of loading) the load failed by some reason and I did not try to repeat, as I would not fit in timeframe I allocated for this benchmark. Maybe I will try sometime again. Query execution So I really have data for InfoBright and MonetDB, let see how fast they are in different queries. First favorite query for any database benchmarker is

. Both InforBritgh and MonetDB executes it immediately with result 117023290 rows Now some random queries I tried again both databases: -Q1: Count flights per day from 2000 to 2008 years

with result: [ 5, 7509643 ] [ 1, 7478969 ] [ 4, 7453687 ] [ 3, 7412939 ] [ 2, 7370368 ] [ 7, 7095198 ] [ 6, 6425690 ] And it took 7.9s for MonetDB and 12.13s for InfoBright. -Q2: Count of flights delayed more than 10min per day of week for 2000-2008 years

Result: [ 5, 1816486 ] [ 4, 1665603 ] [ 1, 1582109 ] [ 7, 1555145 ] [ 3, 1431248 ] [ 2, 1348182 ] [ 6, 1202457 ] And 0.9s execution for MonetDB and 6.37s for InfoBright. -Q3: Count of delays per airport for years 2000-2008

[ “ORD”, 739286 ] [ “ATL”, 736736 ] [ “DFW”, 516957 ] [ “PHX”, 336360 ] [ “LAX”, 331997 ] [ “LAS”, 307677 ] [ “DEN”, 306594 ] [ “EWR”, 262007 ] [ “IAH”, 255789 ] [ “DTW”, 248005 ] with 1.7s for MonetDB and 7.29s for InfoBright -Q4: Count of delays per Carrier for 2007 year

[ “WN”, 296293 ] [ “AA”, 176203 ] … With 0.27s for MonetDB and 0.99sec for InfoBright But it obvious that the more flight carrier has, the more delays, so to be fair, let’s calculate -Q5: Percentage of delays for each carrier for 2007 year. It is a bit more trickier, as for InfoBright and MonetDB you need different query: MonetDB:

InfoBright:

I am using c*1000/c2 here, because MonetDB seems using integer arithmetic and, with c/c2 I received just 1. So result is: [ “EV”, 101796, 286234, 355 ] [ “US”, 135987, 485447, 280 ] [ “AA”, 176203, 633857, 277 ] [ “MQ”, 145630, 540494, 269 ] [ “AS”, 42830, 160185, 267 ] [ “B6”, 50740, 191450, 265 ] [ “UA”, 128174, 490002, 261 ] … with execution time: 0.5s for MonetDB and 2.92s for InfoBright. Warnings: do not try EXPLAIN this query in InfoBright. MySQL is really stupid here, and EXPLAIN for this query took 6 min! If you wonder about carriers – EV is Atlantic Southeast Airlines and US is US Airways Inc. 35.5% flights of Atlantic Southeast Airlines was delayed on more than 10 mins! -Q6: Let’s try the same query for wide range of years 2000-2008: Result is: [ “EV”, 443798, 1621140, 273 ] [ “AS”, 299282, 1207960, 247 ] [ “B6”, 191250, 787113, 242 ] [ “WN”, 1885942, 7915940, 238 ] [ “FL”, 287815, 1220663, 235 ] … And execution 12.5s MonetDB and 21.83s InfoBright. (AS is Alaska Airlines Inc. and B6 is JetBlue Airways) -Q7: Percent of delayed (more 10mins) flights per year: MonetDB:

InfoBright:

with result: [ 1988, 166 ] [ 1989, 199 ] [ 1990, 166 ] [ 1991, 147 ] [ 1992, 146 ] [ 1993, 154 ] [ 1994, 165 ] [ 1995, 193 ] [ 1996, 221 ] [ 1997, 191 ] [ 1998, 193 ] [ 1999, 200 ] [ 2000, 231 ] [ 2002, 163 ] [ 2003, 153 ] [ 2004, 192 ] [ 2005, 210 ] [ 2006, 231 ] [ 2007, 245 ] [ 2008, 219 ] And with execution time 27.9s MonetDB and 8.59s InfoBright. It seems MonetDB does not like scanning wide range of rows, the slowness here is similar to Q0. -Q8: As final I tested most popular destination in sense count of direct connected cities for different diapason of years.

Years, InfoBright, MonetDB 1y, 5.88s, 0.55s 2y, 11.77s, 1.10s 3y, 17.61s, 1.69s 4y, 37.57s, 2.12s 10y, 79.77s, 29.14s UPDATE (5-Oct-2009): James Birchall recommended to use hint COMMENT ‘lookup’ for fields in InfoBright that have less 10.000 distinct values. I tried that, and it affected only these queries. Results with changes: Years, InfoBright, MonetDB 1y, 1.74s, 0.55s 2y, 3.68s, 1.10s 3y, 5.44s, 1.69s 4y, 7.22s, 2.12s 10y, 17.42s, 29.14s -Q9: And prove that MonetDB does not like to scan many records, there is query

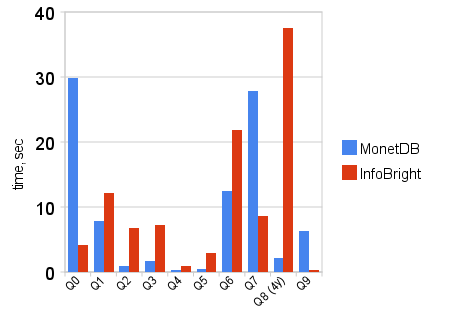

which shows how many records per years +——+———+ | year | c1 | +——+———+ | 1989 | 5041200 | | 1990 | 5270893 | | 1991 | 5076925 | | 1992 | 5092157 | | 1993 | 5070501 | | 1994 | 5180048 | | 1995 | 5327435 | | 1996 | 5351983 | | 1997 | 5411843 | | 1998 | 5384721 | | 1999 | 5527884 | | 2000 | 5683047 | | 2001 | 5967780 | | 2002 | 5271359 | | 2003 | 6488540 | | 2004 | 7129270 | | 2005 | 7140596 | | 2006 | 7141922 | | 2007 | 7455458 | | 2008 | 7009728 | +——+———+ And execution time: MonetDB: 6.3s and InfoBright: 0.31s To group all results there is graph: Conclusions:

• This experiment was not really about InfoBright vs MonetDB comparison. My goal was to check how available OpenSource software is able to handle such kind of tasks.
• Despite InfoBright was slower for many queries, I think it is more production ready and stable. It has Enterprise edition and Support which you can buy. And execution time is really good, taking into account amount of rows engine had to crunch. For query Q8 (1year range) traditional transactional oriented stored engine took 30min to get result.
• I really like MonetDB. I do not know what is the magic behind the curtain, they also do not have indexes like InfoBright, but results are impressive. On drawbacks – the command line is weak ( I had to use bash and pass query as parameter, otherwise I was not able to edit query or check history), the documentation also needs improvements. The fact it does not use the compression also maybe showstopper, the space consumption is worrying. Addressing these issues I think MonetDB may have commercial success
• Worth to note that MonetDB supports all INSERT / UPDATE / DELETE statements (and space is price for that as I understand), while InfoBright ICE edition allows you only LOAD DATA. InfoBright Enterprise allows INSERT / UPDATE but that also is not for online transactions processing.
• Compression in InfoBright is impressive. Even smaller rate 1:10 means you can compress 1TB to 100GB, which is significant economy of space.

I am open to run any other queries if you want to compare or get info about air performance.
