How to Read Simplified SHOW REPLICA STATUS Output

September 20, 2023

Author

Kedar Vaijanapurkar

Insight for DBAs

MySQL

Share this Post:

As a MySQL database administrator, you’re likely familiar with the SHOW REPLICA STATUS command. It is an important command for monitoring the replication status on your MySQL replicas. However, its output can be overwhelming for beginners, especially regarding the binary log coordinates. I have seen confusion amongst new DBAs on which binary log file and position represent what in the replication.

In this guide, we’ll simplify the SHOW REPLICA STATUS output, focusing on the critical binary log coordinates essential for troubleshooting and managing replication.

The key binlog coordinates

Before we delve into the output, let’s understand the key binlog coordinates we’ll be working with:

Master_Log_File: This is the name of the primary binary log file that the I/O thread is currently reading from.

Read_Master_Log_Pos: It represents the position up to which the I/O thread has read in the current primary binary log file.

Relay_Log_File: This is the name of the relay log file that the SQL thread is currently processing.

Relay_Log_Pos: It shows the position up to which the SQL thread has finished processing in the current relay log file.

Relay_Master_Log_File: This is the name of the primary binary log file that contains the most recent event executed by the SQL thread.

Exec_Master_Log_Pos: It indicates the position up to which the SQL thread has processed in the current master binary log file. It can be used to start a new replica from a current replica with the CHANGE MASTER TO … MASTER_LOG_POS option.

Simplified SHOW REPLICA STATUS output

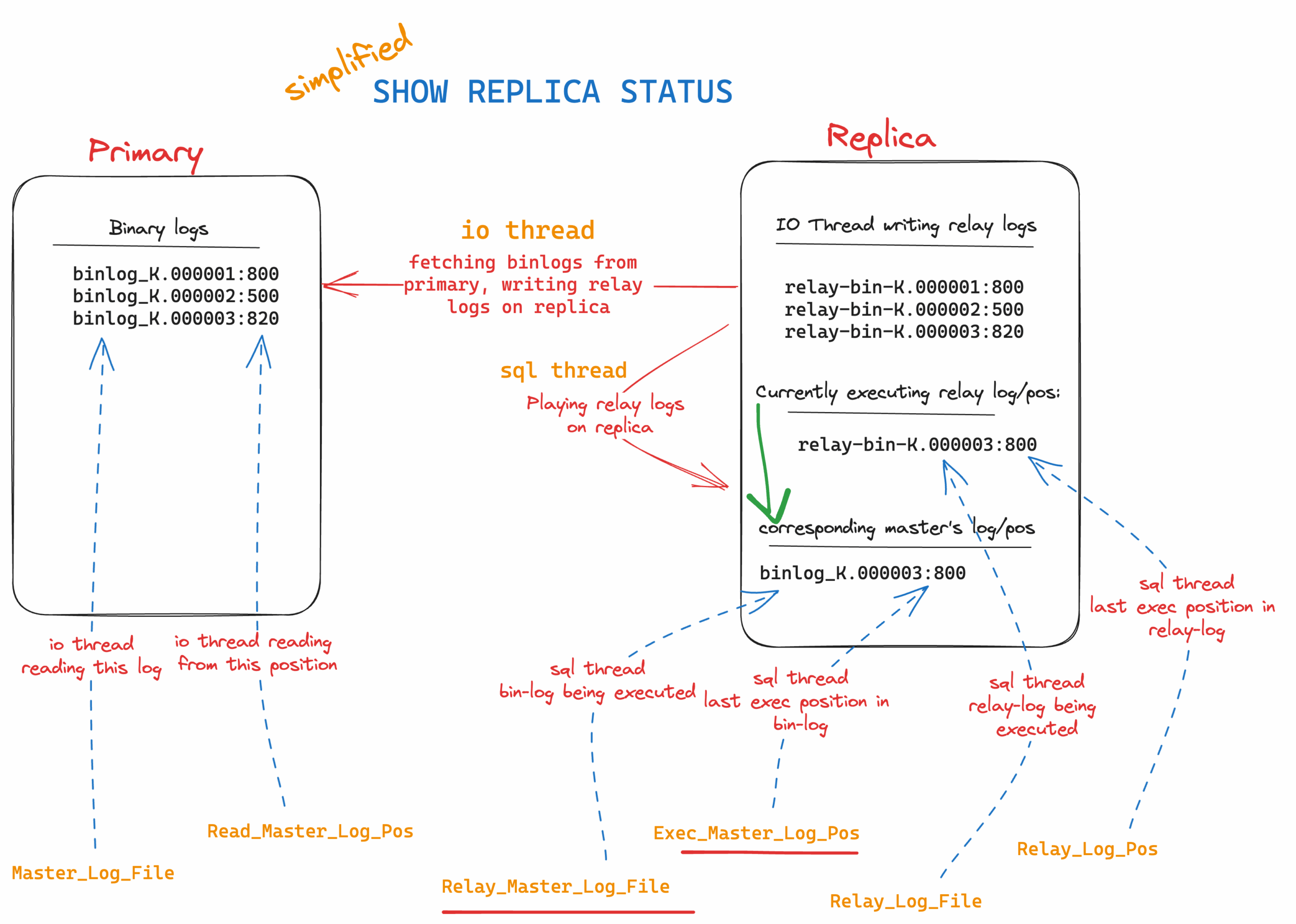

I thought of creating the following image to effectively make you understand the binary log coordinates in the show replica status output.

show replica status

Decoding the SHOW REPLICA STATUS output

Now, let’s break down the SHOW REPLICA STATUS output to understand these binlog coordinates:

Master_Log_File and Read_Master_Log_Pos: These values tell you which primary binary log file and position the I/O thread is currently reading. It’s like the bookmark in a book, showing you where the replication process is in the Primary’s log.

Relay_Log_File and Relay_Log_Pos: These values reveal the name of the relay log file and the position up to which the SQL thread has processed. Think of it as the progress report of the SQL thread.

Relay_Master_Log_File and Exec_Master_Log_Pos: These parameters are essential when you need to reset replication on a replica.

Relay_Master_Log_File specifies the name of the primary binary log file containing the most recent event executed by the SQL thread.

Exec_Master_Log_Pos tells you the precise position within that file. Together, they enable you to pick up where replication left off.

Troubleshooting and managing replication

Understanding these binlog coordinates simplifies troubleshooting and managing replication:

When replication breaks, you can use Relay_Master_Log_File and Exec_Master_Log_Pos to identify the exact location and resume from there.

Monitoring Master_Log_File and Read_Master_Log_Pos helps you keep track of the I/O thread’s progress on the primary.

Checking Relay_Log_File and Relay_Log_Pos lets you know how far the SQL thread has come in processing events.

By grasping these key binlog coordinates, you can confidently manage MySQL replication, resolve issues efficiently, and keep your databases in sync.

Quick tip for DBAs

We know monitoring is one of the important components of your architecture. We recommend using Percona Monitoring and Management, the best monitoring tool for your open source databases.

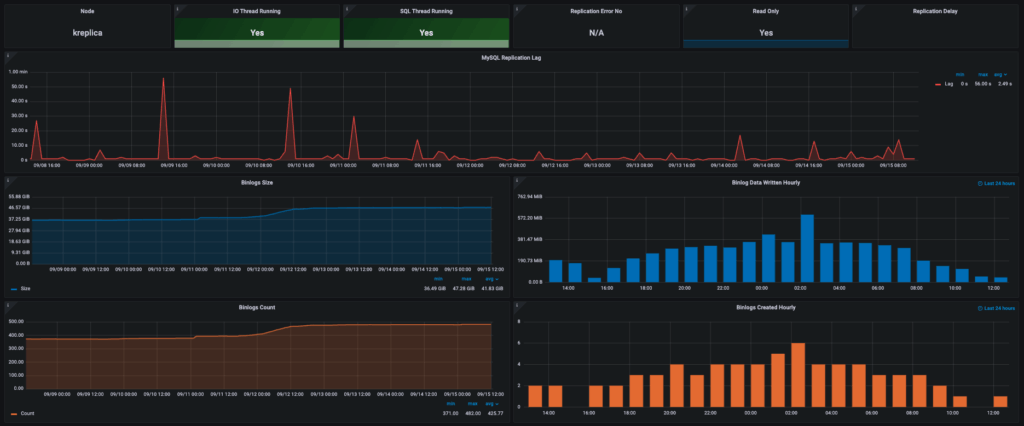

The MySQL Replication Summary dashboard comes in really handy when monitoring the replication status. Please find the sample snapshot from our test monitoring node:

mysql replication dashboard - PMM

Conclusion

The SHOW REPLICA STATUS output shouldn’t be something confusing you. By focusing on the binlog coordinates, you gain valuable insights into the replication process. Whether you’re troubleshooting a broken replica or monitoring ongoing replication, these coordinates guide success in managing MySQL replication. Next time you encounter the SHOW REPLICA STATUS output, remember that it’s simply telling you where your replication stands in the grand scheme of your MySQL environment.

Percona Monitoring and Management is a best-of-breed open source database monitoring solution. It helps you reduce complexity, optimize performance, and improve the security of your business-critical database environments, no matter where they are located or deployed.

Download Percona Monitoring and Management Today

0 0 votes

Article Rating

Subscribe

3 Comments

Oldest

Newest Most Voted

Inline Feedbacks

View all comments

Evgeny Gelfand

2 years ago

Hello.
Perhaps I am running group replication and the master is going down, how I can ensure that the new master will start from the place old master is left?
the table: mysq.slave_worker_info seems not replicated to the slaves in group replication.
What is possibilities please?

Thank you very much
Evgeny

0

Reply

Author

Kedar Vaijanapurkar

2 years ago

Reply to Evgeny Gelfand

Hi Evgeny,

The table, mysql.slave_worker_info, doesn’t seem to be related to group replication, but standard replication. You can confirm the group replication status by querying

SELECT member_id, member_host, member_port, member_state, member_role FROM performance_schema.replication_group_members;

I encourage you to search MySQL group replication articles in Percona blog (there are plenty) or even head over to the Percona Forum to get solution from experts.

Thanks,
K

0

Reply

Evgeny Gelfand

2 years ago

Reply to Kedar Vaijanapurkar

Thank you for your response.
I apologize for the misformulation of my question.
Let me clarify:
Imagine a scenario where we have group replication that accepts changes from another data center:
Site A → Replication → Site B
On Site A, there is a source database running without GTID enabled, referred to as SDB.
On Site B, there is a Group Replication cluster (GRC) consisting of three servers: M1 (master), S1 (slave), and S2 (slave).
The replication channel, configured with ASSIGN_GTIDS_TO_ANONYMOUS_TRANSACTIONS, is defined on M1.
However, when M1 experiences an outage, a new master is automatically chosen.
My objective is to relocate the replication channel from the currently down M1 to the new master. I aim to ensure uninterrupted replication from SDB, regardless of the current master within the GRC.
While I can identify the newly chosen master using ProxySQL, the challenge lies in the channel metadata not being replicated. There are relevant tables under the mysql database, including:

slave_master_info
slave_relay_log_info
slave_worker_info

It appears that tables like mysql.slave_XXX are not replicated and do not get updated on the replicas within the group replication cluster. Interestingly, other tables, such as mysql.user, are successfully replicated.
This situation raises questions about whether this behavior is by design or possibly indicative of a bug.
Thank you,
Evgeny

0

Reply
