Fixing MySQL scalability problems with ProxySQL or thread pool

In this blog post, we’ll discuss fixing MySQL scalability problems using either ProxySQL or thread pool.

In the previous post I showed that even MySQL 5.7 in read-write workloads is not able to maintain throughput. Oracle’s recommendation to play black magic with innodb_thread_concurrency and innodb_spin_wait_delay doesn’t always help. We need a different solution to deal with this scaling problem.

All the conditions are the same as in my previous run, but I will use:

• ProxySQL limited to 200 connections to MySQL. ProxySQL has a capability to multiplex incoming connections; with this setting, even with 1000 connections to the proxy it will maintain only 200 connections to MySQL.
• Percona Server with enabled thread pool, and a thread pool size of 64

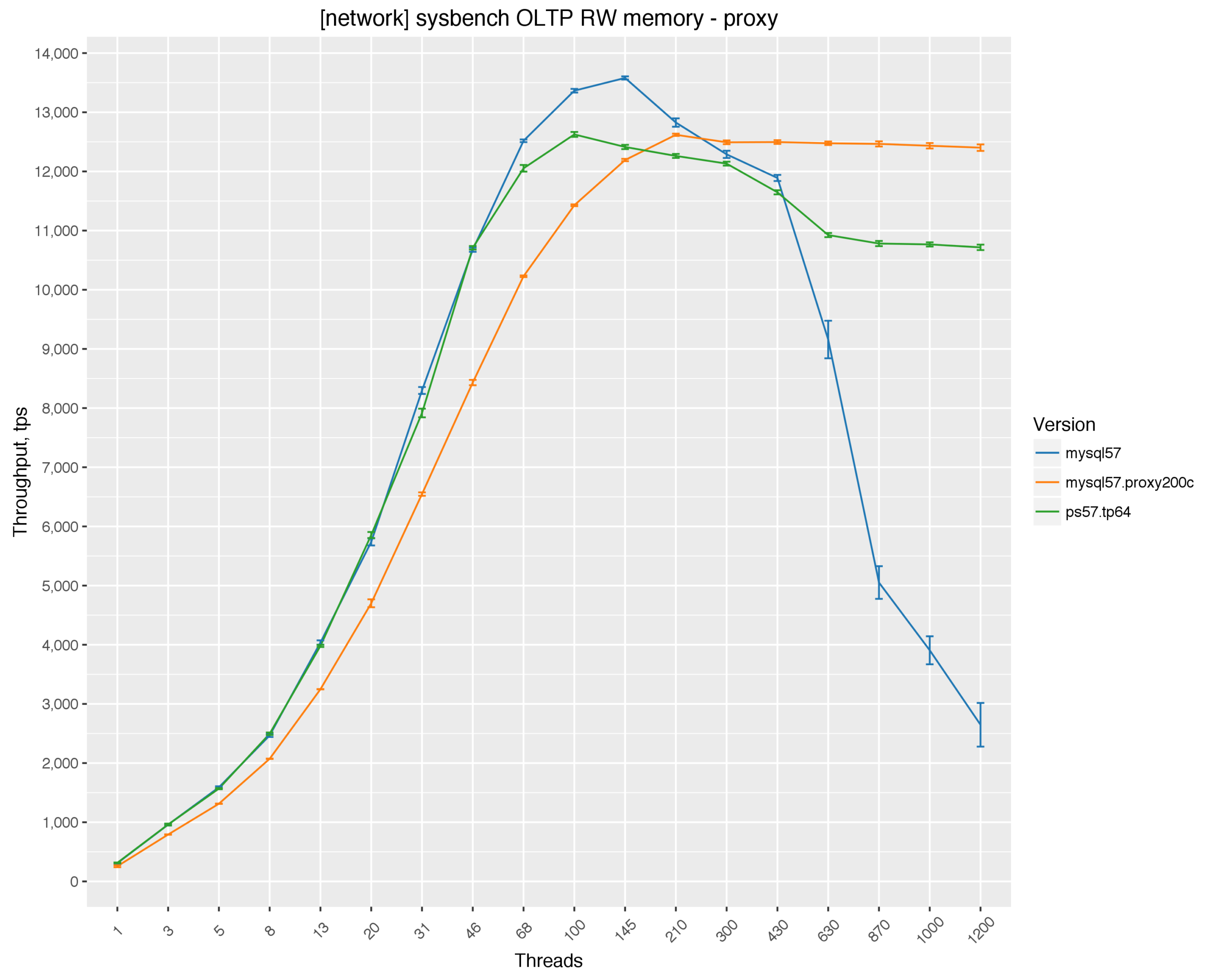

You can see final results here:

There are good and bad sides for both solutions. With ProxySQL, there is a visible overhead on lower numbers of threads, but it keeps very stable throughput after 200 threads.

With Percona Server thread pool, there is little-to-no overhead if the number of connections is less than thread pool size, but after 200 threads it falls behind ProxySQL.

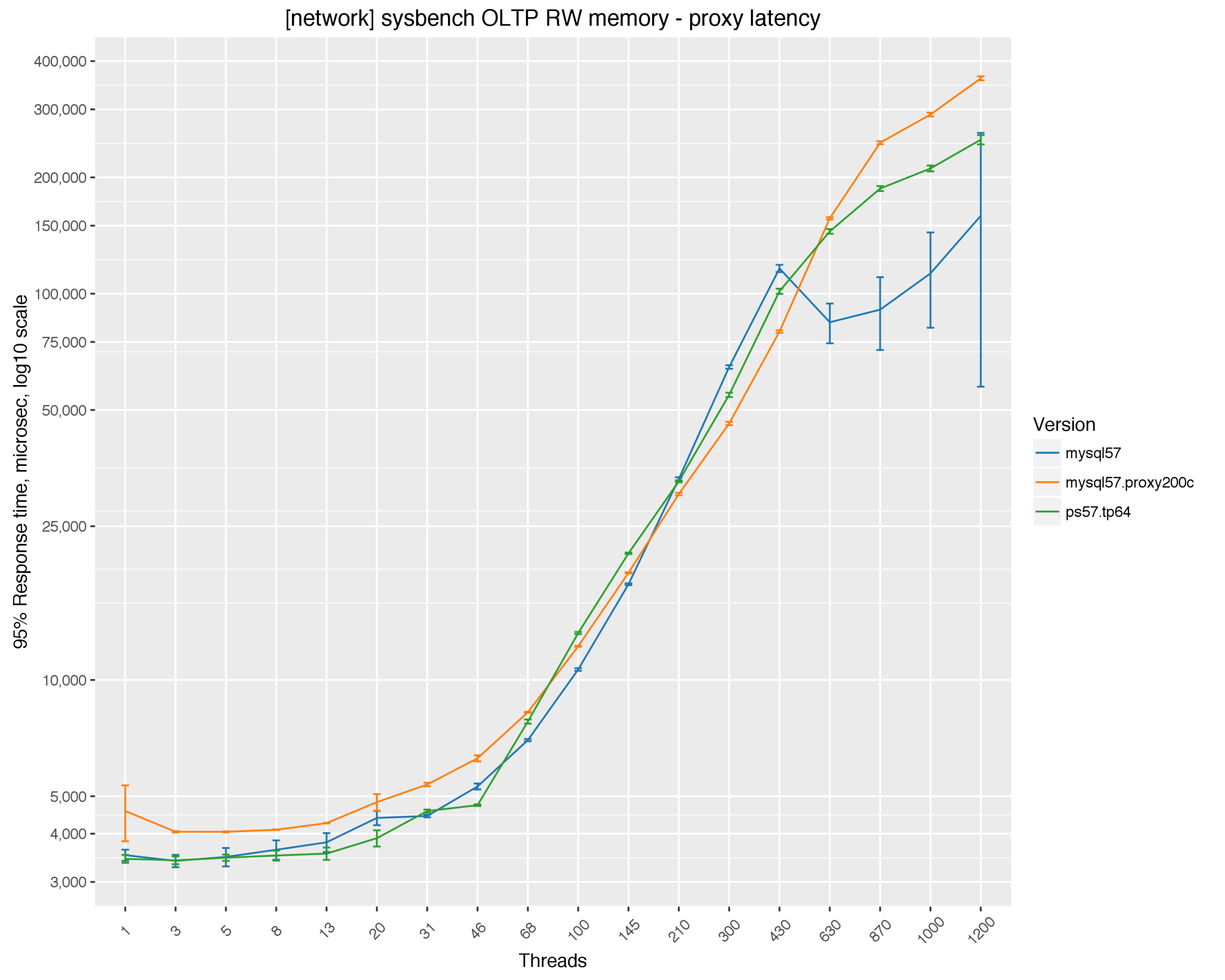

There is chart with response times

I would say the correct solution depends on your setup:

• If you already use or plan to use ProxySQL, you may use it to prevent MySQL from saturation
• If you use Percona Server, you might consider trying to adjust the thread pool

Summary https://github.com/Percona-Lab-results/201605-OLTP-RW-proxy-threadpool/blob/master/summary-OLTP-RW-proxy.md.
