When you run a simple write,
…it may look simple, but under the hood, MySQL’s InnoDB engine kicks off a pretty complex sequence to ensure your data stays safe, consistent, and crash-recoverable.

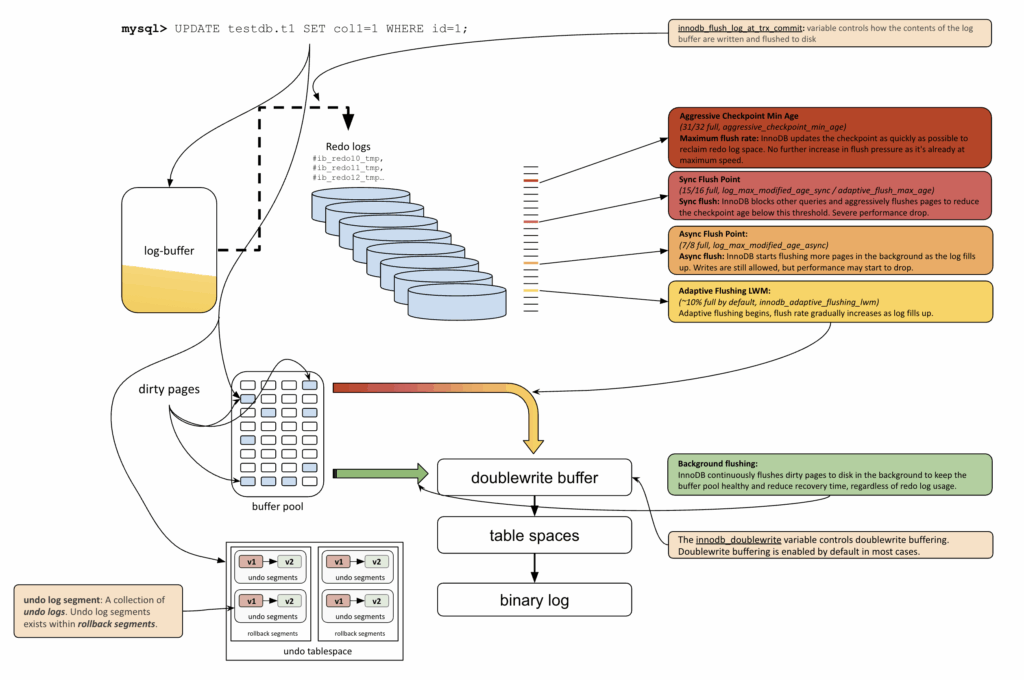

In the top-left corner of the diagram, we see exactly where this begins — the moment the query is executed:

The log buffer: First stop for changes

As soon as the update hits InnoDB, the change is written to the log buffer in memory, not to disk. This is fast, but temporary.

Shortly after, InnoDB flushes these changes from the log buffer to the redo logs (center-top of the diagram), which are physical files like #ib_redo0, #ib_redo1, etc. These logs are critical for crash recovery; they guarantee that even if MySQL crashes, it can replay what happened and restore the last consistent state.

Buffer pool & dirty pages: The real data

While redo logs are about recovery, actual data lives in the buffer pool. This is where your table pages sit in memory. The updated page is now a dirty page, meaning it has changes that haven’t been written to disk yet.

In the diagram’s lower left section, dirty pages accumulate in the buffer pool. These will be flushed as soon as possible because background flushing continuously flushes dirty pages to disk.

As shown in green on the bottom-right, InnoDB constantly flushes dirty pages even if the redo logs aren’t full. This helps keep the buffer pool healthy and recovery times short, regardless of pressure from log usage.

Undo logs and undo segments

Whenever an UPDATE or DELETE is executed, InnoDB doesn’t just store the new value — it also records the old value in the undo log. These logs serve two critical purposes:

• Rollback: If a transaction issues ROLLBACK, InnoDB uses the undo log to restore the previous state of the modified rows.
• MVCC (Multi-Version Concurrency Control): Undo logs allow concurrent transactions to see a consistent snapshot of the data. For example, while one transaction updates col1=1, another transaction may still read the old value through the undo log, depending on its isolation level.

Undo logs are stored in undo segments, which are grouped inside rollback segments. This structure makes it possible for multiple transactions to safely maintain their own undo information simultaneously.

Over time, once transactions are committed and older versions are no longer needed, the purge thread removes undo records in the background, preventing tablespace bloat and reclaiming space.

Redo log usage triggers checkpoints

Here’s where things get tricky: redo logs aren’t infinite. As they fill up, InnoDB has to start flushing dirty pages to make space. The middle-right part of the diagram shows the four flushing thresholds that control this:

• Aggressive Checkpoint Min Age (31/32 full):
  InnoDB flushes as fast as possible. You’re out of space. No extra boost is possible; it’s maxed out.
• Sync Flush Point (15/16 full):
  InnoDB starts blocking other transactions to flush pages. Expect a visible performance hit.
• Async Flush Point (7/8 full):
  Pages are flushed in the background. Writes still work, but latency may increase.
• Adaptive Flush LWM (~10% full):
  Flushes begin gradually, keeping redo usage under control without harming performance.

These thresholds, shown in the diagram with different colors, represent how aggressively InnoDB responds when redo space runs low.

Eventually, dirty pages are written from the buffer pool to the actual table space files (bottom-center of the diagram). This can happen during forced flushes or via ongoing background activity.

Enter the binary log

Once the transaction is ready to commit, InnoDB doesn’t just stop at the redo logs.

It also writes a statement or row change event to the binary log (a separate file used for replication and recovery). This is shown in the diagram as a separate arrow from table space to the binary log.

This log is used for:

• Replication: Secondary servers read the binary log to stay in sync.
• Point-in-Time Recovery: You can restore backups and replay only recent changes.

Flush timing – innodb_flush_log_at_trx_commit

All these log buffers and flushes are coordinated by a very important setting: innodb_flush_log_at_trx_commit

This variable controls when InnoDB flushes the log buffer to the redo log files on disk. It determines the tradeoff between durability and performance:

So even if your redo logs are fast, the actual moment they’re flushed to disk depends on this setting. If you want true ACID guarantees, keep this set to 1.

Key takeaways

• Redo logs are more than a crash recovery mechanism; they optimize write performance by enabling fast sequential logging, allowing multiple sessions to flush together, and delaying dirty page writes so multiple changes to the same page can be written in one shot. They also define the real order of changes through the LSN timeline.
• Buffer pool holds actual data pages, and flushing them reduces memory pressure.
• Binary log is separate and necessary for replication + PITR. It’s not redundant with redo.
• innodb_flush_log_at_trx_commit determines if commits are really durable; choose wisely.
• Letting redo logs fill up can cause MySQL to stall or block writes, so monitor and size accordingly.
